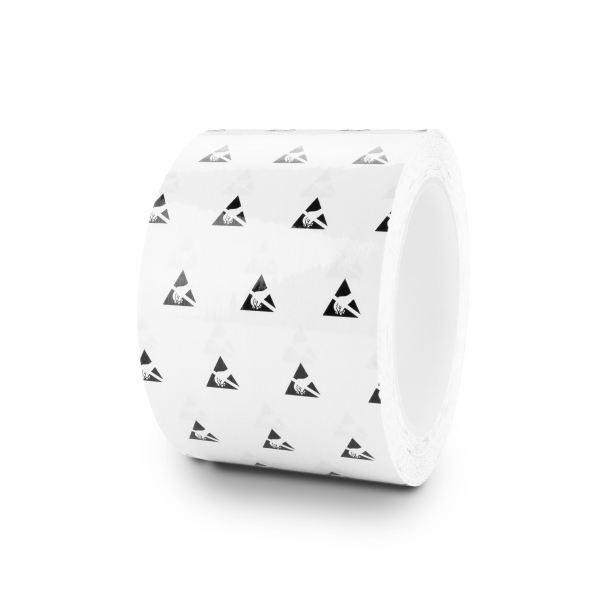

ESD floor marking tape - WT-5760

ESD-floor marking tape - WT-5760

Flexible PET tape with double-sided ESD protection - ideal for versatile use.
The tape provides reliable performance. The double-sided ESD protection feature (including ESD symbol) ensures double safety. It is dimensionally stable and can be removed without leaving any residue.

• Double-sided ESD protection with symbol - visible safety
• Long lifespan thanks to PET layer
• Proven ESD protection for safe use in sensitive areas
• RoHS-compliant



ESD - Electrostatic Discharge	EPA - ESD Protected Area
Meaning: Stands for Electrostatic Discharge. This discharge can destroy sensitive components in electronic devices (e.g., microchips, sensors).	Meaning: Stands for ESD Protected Area. This is a controlled workspace or zone where all measures are taken to prevent or safely dissipate electrostatic discharges. Typical measures in an EPA:
ESD = the process / the risk (electrostatic discharge itself)	ESD floor marking or conductive floor coverings ESD work mats, clothing, wristbands Grounding cables for tools and machines Use of ESD-safe materials EPA = the protected work area in which ESD is controlled

Technical Data

Material:	Vinyl with PET laminate
Material thickness:	0,142 mm ± 0,1
Surface resistance:	surface: <1.0 x 109 Ω, adhesive: <1.0 x 1010 Ω
Surface:	glossy
Adhesive:	Acrylate
Adhesive property:	permanent
Temperature range:	-20°C to +70°C
Processing temperature:	≥12°C
Available colors:	yellow, blue, red, green, white, orange

Further Information

It is possible to drive over the belt with floor conveyors. Turning and twisting on the tape with floor conveyors or similar heavy vehicles must be avoided and can lead to the destruction of the tape. To achieve optimum adhesion, the substrate must be free of release agents such as grease, oil, surfactants, dirt and dust. Store in a dry and UV-protected place at 10°C to 25°C.
